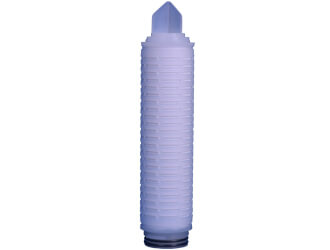

Hydrophobic PTFE Filter Cartridge

The naturally hydrophobic PTFE membrane is ideally suited for gas filtration and aggressive chemicals such as acids, bases, and solvents. In addition, the hydrophobic membrane provides superior flow and pressure drop characteristics per unit area for gas filtration and tank venting applications. PTFE Cartridges are well-suited for critical applications where superior flow and particle removal efficiency at 0.1 and 0.2 micron is required.
Sealing technology Thermal Bonding, No Adhesives, binders, or surfactants are used in the manufacturing process. Filter cartridges are 100% Integrity tested prior to release ensures consistent performance to specification. Advanced Pleat Technology construction allows maximum fluid and contaminant access to filter surface area for highest throughput. The all polypropylene construction provides excellent thermal and chemical compatibility with low and high pH chemicals.

• Organic solvent filtration
• Filtration for harsh chemicals and HPLC mobile phases that destroy other membrane materials
• Sterile filtration for aqueous media
• Filtration for strongly corrosive or oxidizing solutions
• Acids & Bases
• Fine Chemicals

• Plating Solutions
• Parts Cleaning
• Ink Jets
• Electronics
• Pharmaceuticals
• Biologics
• Dyes
• Lacquers

Materials of Construction

• Membrane: Hydrophobic PTFE
• Membrane Supports : Polypropylene
• Cage, Core, End Caps : Polypropylene
• O-Rings : Silicone, EPDM, Viton, Buna N, TES, and TEV

Operating Conditions
Maximum Forward Differential Pressure :

• 4.2 bar @ 23°C
• 1.5 bar @ 80°C

Filtration Area, ft²

• 5.8ft² per 10-inch cartridge
