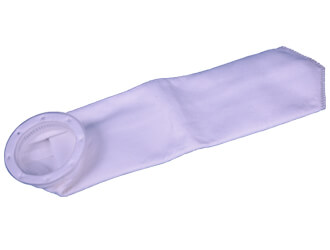

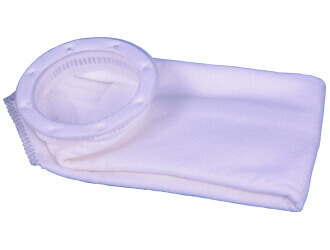

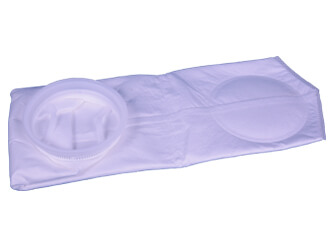

PP Bags

PFP Bag Filters are manufactured in 2 grades, needle sew bags and welded PP Bags. PP Filter bags are available from 5 to 100 microns and are normally used as pre filter to cartridge filters to reduce load. It helps in filtering contamination of various microns. PP Welded filter bags with PP Collar are made from superior quality PP and welded seam ensures that unfiltered liquid is not by passed from the seam of the bag. Welded PP Collar lock ensures tight fitting and eliminates liquid bypass from the collar. PFP Made Filter bags are suitable to fit in your existing housing, there is no need to change your existing housing.

Features

• Available from 5 to 100 Micron
• Size can be customized as per requirement
• Welded construction ensures 100% filtration, UN Filtered liquid Bypass from needle holes is eliminated
• High Flow Rate
• Low Pressure Drop
• Polypropylene is FDA food grade compliant

Specification

• Polypropylene Max Operating temperature - 93-104 Degrees
• Different Pressure for Choking - 35PSIG
• Optimal Differential Pressure for Changing - 15 PSIG

Sizes

1. 7* 16 Inch
2. 7* 32 Inch
3. 4* 10 Inch
4. 4* 20 Inch
5. 7* 20 Inch

Micron Rating - 5, 10, 20, 30, 40, 50, 100
Ring - PP Collar / SS Ring
